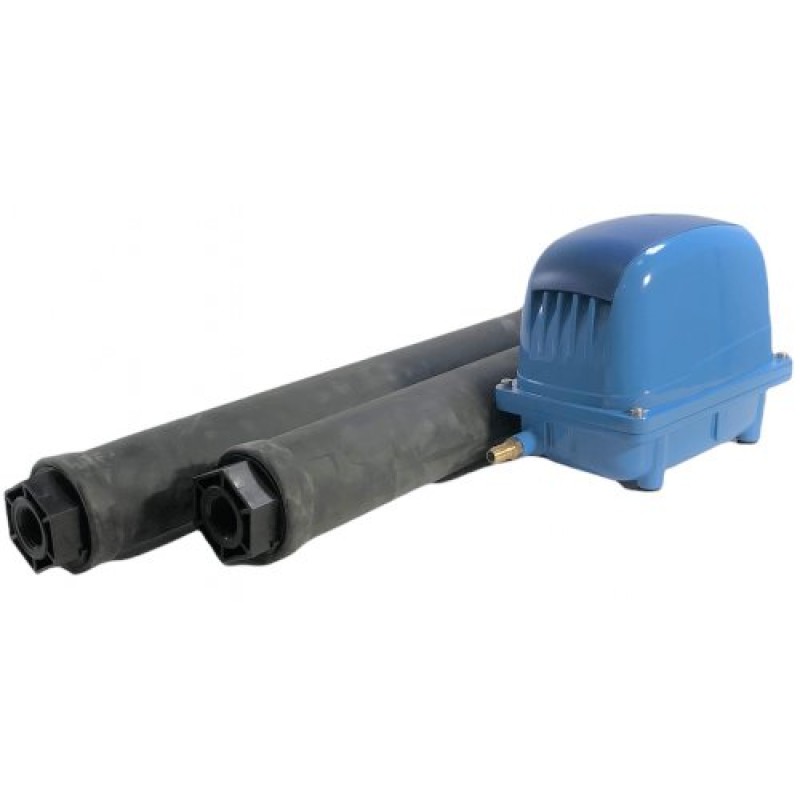

Aerācijas komplekts: AquaForte AP-200 gaisa sūknis un EPDM diafragmas difuzors JAEGER JetFlex TD ™ 63/2100
- Ražotājs:Erum
- Modelis: E1SC201
-
428,72€
Aerācijas komplektiErum
Aerācijas komplekts: AquaForte AP-200 gaisa sūknis un EPDM diafragmas difuzors JAEGER JetFlex TD ™ 63/2100
New series high pressure air pumps. The air pumps have a compact size and a low power consumption. They have a low noise operation. The air pumps have an automatic power-off protection when membranes are worn out.
Comes with 9 mm (AP-35 till AP-100) or 12 mm (AP-150 and AP-200) hose tail.
24 months warranty.
| Type | Power, W | Cap. at 1m | Cap. at 2 m | Max. lifting | Outlet | Kg | dB |
| AP-35 | 20 | 30 l/m | 13 l/m | 2.8 m | 16.5 mm | 2.7 | 32 |
| AP-45 | 25 | 47 l/m | 24 l/m | 3.0 m | 16.5 mm | 2.9 | 33 |
| AP-60 | 38 | 73 l/m | 45 l/m | 3.5 m | 18 mm | 3.4 | 35 |
| AP-80 | 55 | 84 l/m | 53 l/m | 3.6 m | 18 mm | 3.5 | 36 |
| AP-100 | 65 | 106 l/m | 70 l/m | 3.8 m | 18 mm | 3.6 | 36 |
| AP-150 | 125 | 190 l/m | 150 l/m | 4.2 m | 18 mm | 7.8 | 45 |
| AP-200 | 200 | 250 l/m | 200 l/m | 4.5 m | 18 mm | 8 | 46 |
The Jaeger TD™ tube diffuser series combines cost effective design, low installation costs, reliability and performance in intermittent and continuous aeration processes.
- Precision die cut openings for high oxygen transfer efficiency and performance: The operating pressure (DWP) can be adjusted to the system specification by using different slit patterns varying number and length of slits and the spacing between the slits.
- Active length from 200 – 1200 mm with standard length of 500 mm, 750 mm, and 1000 mm.
- Mounting onto round and square tube laterals.
- Different membrane materials (can be equipped with an anti-fouling surface based on nano technology):
- EPDM: municipal wastewater;
- Low plasticizer EPDM: animal processing, food processing, beverage production;
- Silicone: paper and petrochemical industry;
- Polyurethane: petrochemical industry.
| Type | Membrane length | Total membrane length | Material | Air flow rates | Max. overload | Perforated area | Thread | Weight |
| TD63/2050D | 500 mm | 560 mm | EPDM | 1-6 m3/h | 10 m3/h | 0,090 m2 | 3/4" (internal) | 0,8 kg |
| TD63/2075D | 750 mm | 810 mm | EPDM | 2-9 m3/h | 15 m3/h | 0,135 m2 | 3/4" (internal) | 1,1 kg |
| TD63/2100D | 1000 mm | 1060 mm | EPDM | 3-12 m3/h | 20 m3/h | 0,18 m2 | 3/4" (internal) | 1,3 kg |
