Aerācijas komplekts: gaisa sūknis SECOH JDK-S-60 un membrānas disku difuzors Jaeger JetFlex HD™ 340
- Ražotājs:Erum
- Modelis: E1SC135
-
225,69€
Aerācijas komplektiErum

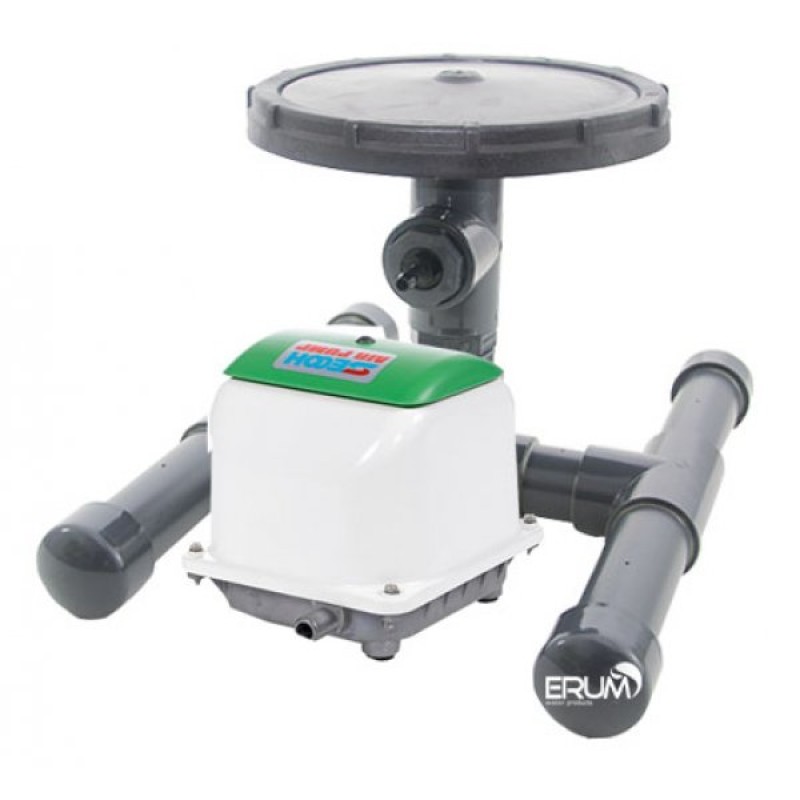

Aerācijas komplekts: gaisa sūknis SECOH JDK-S-60 un membrānas disku difuzors Jaeger JetFlex HD™ 340
Aeration Set:
- Air pump Secoh JDK-S-60.
- Membrane disc diffuser Jaeger JetFlex HD™ 340.

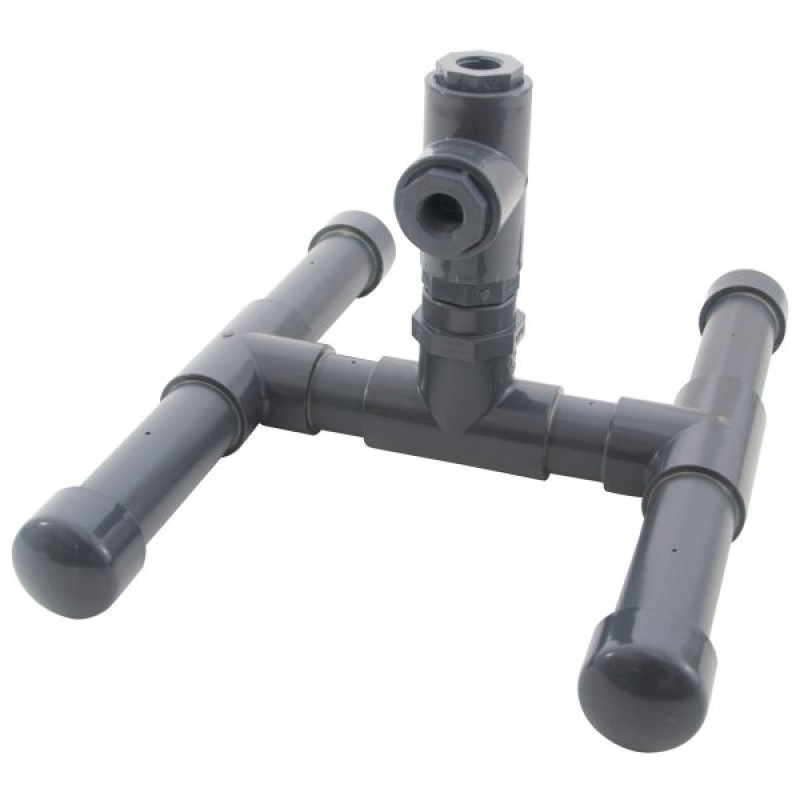

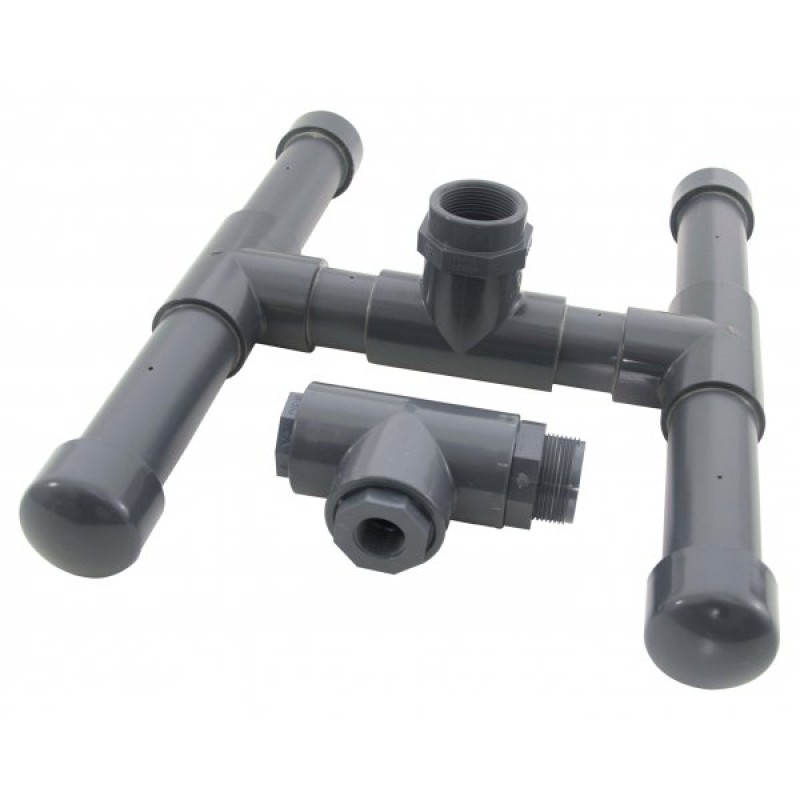

- Membrane diffuser stand (recomendation: stand housing must be filled with ballast (sand, gravel, etc.).
- PP straight hosetail male threaded PUSH-ON ¾” x 19mm.
Secoh JDK-S-60 outlet diameter is 19 mm. Air hose length: under requirement.
Secoh Air pumps have a well-deserved reputation as top quality air pumps. Waterproof and very quiet, extremely powerful and reliable. They have the big advantage of having a rainproof cover that makes them easier to install than many other air pumps.
| Model | JDK-S-60 | JDK-S-80 | JDK-S-100 | JDK-S-120 | ||
| Air flow | l/min | 0 mbar | 130 | 145 | 150 | 190 |
| 50 mbar | 125 | 130 | 145 | 180 | ||
| 100 mbar | 105 | 115 | 130 | 160 | ||
| 150 mbar | 85 | 90 | 110 | 140 | ||
| 200 mbar | 60 | 75 | 95 | 120 | ||
| 250 mbar | 30 | 50 | 70 | 98 | ||
| Max. pressure | mbar | 250 | 250 | 250 | 250 | |
| Voltage | VAC | 230 | 230 | 230 | 230 | |
| Power concuption | W | 200 mbar | 40 | 50 | 75 | 95 |
| Frequency | Hz | 50 | 50 | 50 | 50 | |
| Noise | dB(A) | 41 | 43 | 42 | 45 | |
| Dimensions | mm | L x W x H | 214 x 185 x 211 | |||
| Conection | mm | Ø external | 19 | 19 | 19 | 19 |
| Weigth | kg | 6.5 | 6.5 | 6.5 | 6.5 | |
| Auto brakes | Yes | |||||
| Corps | Plastic | Aluminum | ||||
| Protection class | IP | 44 | ||||
| Warranty | 24 month | |||||
- Oil free.
- Silent operation.
- Robust design.
- Low Maintenance - Just occasional filter change necessary.
- Long life expectancy - Up to 35 000 hours.
Membrane disc diffusers Jaeger JetFlex HD™ technical data:
| Type | Diameter | Material | Air flow rates | Max. overload | Perforated area | Thread | Weight |
| HD270 | 270 mm | EPDM | 2 - 6 m3/h | 10 m3/h | 0.037 m2 | 3/4" (male) | 0.6 kg |
| HD340 | 340 mm | EPDM | 5 - 12 m3/h | 15 m3/h | 0.060 m2 | 3/4" (male) | 0.85 kg |
